Shadow Gap
Sliding pocket doors
Find your solution
The shadow gap door frame kit is for use with a shadow gap. The frames are manufactured from solid hardwood steamed beech with a density of 720kg/m3 and is a fully FSC certified.
The shadow gap pocket sliding door frame comes primed ready for site painting as standard and can be made in different timber species and finishes _ upon request. Enigma is an intuitive system to install and it requires a simple wall build-up. This shadow gap door frame kit is a non fire door product.
› 94mm stud
› 2 layers of 12.5mm plasterboard either side
The strike jamb comes with rubber batwing seals to provide a seal when the door is closed.
The leading edge jamb the leading support of the side pocket which has a side flange for the plasterboard to be butt up against.
The intermediate jamb forms the rest of the pocket. The aluminium profile has a timber insert which provides extra strength and facilitates easy fixing.
The head channel is the same width as the stud making it simple to accurately place and fix to the head stud.
The leading edge and intermediate jambs slot into the base channel and are fixed into place.
Manufactured by GEZE it requires almost no maintenance and is virtually silent.
The standard sliding gear set is surface-mounted onto the top of the door and is tested to EN 1527 1998 to 100,000 cycles.
The big benefit of the Enigma system is being aluminium the system can be adjusted in height and width very simply using a standard carpenters chop saw. This means that the kit can suit your specific size.
The intermediate jambs and the leading edge slot into the head channel and, once they are plumb, are securely fixed in place.

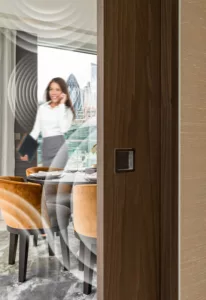

The Enigma doorset has been acoustically tested and can be provided with the following ratings:
› 23dB
› 24dB
› 28dB
› 30dB
Please contact us on 020 3880 0339 where our Project Consultants would be glad to advise you further.
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
574mm – 900mm ES 01
574mm – 900mm (Concealed NFR) ES 01C
900mm – 1290mm ES 02
900mm – 1290mm (Concealed NFR) ES 02C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
784mm – 1290mm ES 03
784mm – 1290mm (Concealed NFR) ES 03C
1290mm – 1450mm ES 04
1290mm – 1450mm (Concealed NFR) ES 04C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
The Enigma touch latch allows you to eject the door from the pocket with a small push of the door leaf.
Order codes
130N Touch latch TL130
Virtually silent operation for use with double-door kits when you require both doors to open while only operating one leaf.
Order codes
Timber door simultaneous opening SOT
In situations where you can’t fit the head of the pocket door directly to the building ceilings or floor slab and deflection tolerance is required, the Enigma system can be supplied with a self supporting head beam. This enables the head to be fitted, supporting up to 120kg.
If your door closes against a wall perpendicular to the door itself, a perpendicular wall jamb profile is provided to do away with the need to have a protruding nib.
The Enigma is fitted with a remote stop as standard, which allows you to adjust the back stop of the pocket door kit once the plasterboard is complete and the door leaf has been installed.
The head of the pocket door kit with track packed down, sits flush with the ceiling.
The Enigma pocket door system can be provided with an automated self closer. The closer is provided with infinite adjustment providing an extremely user friendly experience.
Satin stainless steel
NFR – ELS01
FD30 – ELS02
Satin stainless steel
60mm square – SFP01
Satin stainless steel
70mm diameter – CFP01
Satin stainless steel
135mm long – OFP01
Satin stainless steel
135mm long – RFP01
For complete design freedom, the Enigma shadow gap door system can be ordered with or without a door leaf.
4 hardwood lippings surround a solid timber core on the Selo door leaf.
Space for the sliding gear and the bottom guide are then cut out as necessary – and sent to the site ‘ready to fit’.
All Selo door leafs are solid timber core and lipped on all 4 sides with hardwood lippings.
Enigma doors are then cut out for sliding gear and the bottom guide channel where required and sent to site in their ‘ready to fit’ form.
For doors wider than 1220mm the door will be supplied in 2 sections to achieve the width. A jointing section will be supplied and a neat 3x3mm shadow gap.
Provided pre-primed for painting on site.
A full range of RAL colours can be selected for the door leafs.
Extra durability can be added to the sliding pocket doors with a laminate coating.
If the design requires a veneer, choose from any timber style – it is then lacquered in a sheen of 30%.
This kit is for use with a shadow gap. Made from solid hardwood steamed beech, it has a density of 720kg/m3 – and is completely FSC certified.
This invisible pocket door unit comes primed for painting on site as standard. Different finishes and timber species are available. Easy to install with only a basic wall build up needed.
› 94mm stud
› 2 layers of 12.5mm plasterboard either side
The Enigma shadow gap pocket door is sealed when closed, thanks to rubber batwing seals on the strike jamb.
The side pocket’s leading support is the leading edge jamb. This has a side flange for butting up to the plasterboard.
The rest of the pocket is formed by the intermediate jamb. Inside the aluminium profile is a timber insert, providing extra strength. This also makes fixing straightforward.
Accurate placing and fixing of the head channel is easy, since it is the same width as the stud.
Into the base channel are slotted the leading edge and the intermediate jambs.
The Enigma pocket doorset gear sets are made to the very highest standards by GEZE, and are virtually silent. Little to no maintenance is needed.
The sliding gear is surface mounted. It has been tested to EN 1527 1998 – to 100,000 cycles
The height and the width of the Enigma shadow gap unit can be adjusted as required – using only a basic carpenter’s chop saw. This offers superb flexibility.
The intermediate jambs and the leading edge slot into the head channel and, once they are plumb, are securely fixed in place.

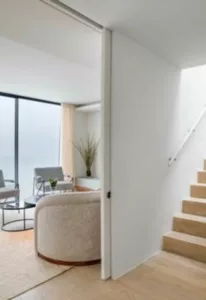

The Enigma doorset has been fully fire tested to 30 minutes in single and double configurations.
Important note
To ensure the fire integrity is not compromised it is important that the wall partition is suitable and also the interface between the partition and doorset is correct.
At Enigma we are able to provide advice on your partition and interface details to ensure the fire regulations are met properly in conjunction with the Enigma doors. Please contact us on 020 3880 0339 where our Project Consultants would be glad to assist.
The Enigma doorset has been acoustically tested and can be provided with the following ratings:
› 23dB
› 24dB
› 28dB
› 30dB
Please contact us on 020 3880 0339 where our Project Consultants would be glad to advise you further.
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
574mm – 900mm ES 01
574mm – 900mm (Concealed NFR) ES 01C
900mm – 1290mm ES 02
900mm – 1290mm (Concealed NFR) ES 02C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
Soft close and open
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
784mm – 1290mm ES 03
784mm – 1290mm (Concealed NFR) ES 03C
1290mm – 1450mm ES 04
1290mm – 1450mm (Concealed NFR) ES 04C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
Thanks to this innovative latch, the shadow pocket door can be opened with a single push of one leaf.
Order codes
130N Touch latch TL130
Virtually silent operation for use with double-door kits when you require both doors to open while only operating one leaf.
Order codes
Timber door simultaneous opening SOT
In situations where you can’t fit the head of the pocket door directly to the building ceilings or floor slab and deflection tolerance is required, the Enigma system can be supplied with a self supporting head beam. This enables the head to be fitted, supporting up to 120kg.
If your door closes against a wall perpendicular to the door itself, a perpendicular wall jamb profile is provided to do away with the need to have a protruding nib.
The Enigma is fitted with a remote stop as standard, which allows you to adjust the back stop of the pocket door kit once the plasterboard is complete and the door leaf has been installed.
Full height, floor to ceiling Enigma doors give the ultimate open and spacious feel. The head of the pocket door kit along with the timber trims that carry the intumescent seals are set above the ceiling.
The Enigma pocket door system can be provided with an automated self closer. The closer is provided with infinite adjustment providing an extremely user friendly experience.
Satin stainless steel – FD30
Product code: ELS02
For complete design freedom, the Enigma shadow gap door system can be ordered with or without a door leaf.
4 hardwood lippings surround a solid timber core on the Selo door leaf.
Space for the sliding gear and the bottom guide are then cut out as necessary – and sent to the site ‘ready to fit’.
All Selo door leafs are solid timber core and lipped on all 4 sides with hardwood lippings.
Enigma doors are then cut out for sliding gear and the bottom guide channel where required and sent to site in their ‘ready to fit’ form.
For doors wider than 1220mm the door will be supplied in 2 sections to achieve the width. A jointing section will be supplied and a neat 3x3mm shadow gap.
The Enigma shadow gap sliding pocket door comes primed and ready to be painted on site.
A full range of RAL colours can be selected for the door leafs.
Extra durability can be added to the sliding pocket doors with a laminate coating.
If the design requires a veneer, choose from any timber style- it is then lacquered in a sheen of 30%.
This door frame is for use with a shadow gap in a frameless glass door. The frames are composed of solid hardwood steamed beech (720kg/m3). Fully FSC certified.
This door unit comes primed – ready to be painted on site. Choose from various finishes and timber species veneers. The door frame is highly easy to install – it simply needs a straightforward wall build up.
› 94mm stud
› 2 layers of 12.5mm plasterboard either side

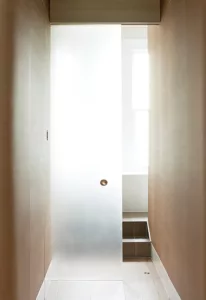

The Enigma system can be provided with a glass leaf – for the ultimate frameless finish.
The door’s side pocket – which is the leading support for the leading edge jamb – features a side flange for the plasterboard to easily butt against.
The rest of the Enigma door set’s pocket is formed by the intermediate jamb. Inside the aluminium profile is a timber insert, delivering extra strength – and making fixing very straightforward.
Since it is the same width as the stud, the head channel is easy to place – with complete accuracy.
Into the Enigma door set’s base channel are fixed the leading edge and intermediate jambs.
Almost no maintenance is needed with these GEZE-made gear sets. They are also virtually silent.
The standard sliding gear set is surface mounted on the top of the Enigma glass door. It has been tested to 100,000 cycles – to EN 1527 1998.
The Enigma system – in all configurations including the frameless glass door – can be adjusted in terms of height and width.
The intermediate jambs and the leading edge slot into the head channel and, once they are plumb, are securely fixed in place.
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
574mm – 900mm ES 01
574mm – 900mm (Concealed NFR) ES 01C
900mm – 1290mm ES 02
900mm – 1290mm (Concealed NFR) ES 02C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
Soft close and open
Using a soft-close damper is the ultimate finish to the sliding doors.
Order codes
784mm – 1290mm ES 03
784mm – 1290mm (Concealed NFR) ES 03C
1290mm – 1450mm ES 04
1290mm – 1450mm (Concealed NFR) ES 04C
Important
Max door weight 80kg. This needs to be installed when fitting the track.
Virtually silent operation for use with double-door kits when you require both doors to open while only operating one leaf.
In situations where you can’t fit the head of the pocket door directly to the building ceilings or floor slab and deflection tolerance is required, the Enigma system can be supplied with a self supporting head beam. This enables the head to be fitted, supporting up to 120kg.
If your door closes against a wall perpendicular to the door itself, a perpendicular wall jamb profile is provided to do away with the need to have a protruding nib.
The Enigma is fitted with a remote stop as standard, which allows you to adjust the back stop of the pocket door kit once the plasterboard is complete and the door leaf has been installed.
Enigma Motus is a powered pocket door that utilises a contactless electro magnetic propulsion system to silently open and close the sliding pocket door with no or minimal handling of the door itself. This system fits with any of the 3 frame types – visible frame, concealed frame and shadow gap. The door frames are manufactured from solid hardwood steamed beech with a density of 720kg/m3 and is a fully FSC certified.
With this kit the door frame comes primed, ready for site painting as standard, and can be made in a number of different timber species and finishes at your request. No architraves included. Enigma Motus requires a simple wall build-up, which varies depending on fire rating:
NFR:
› 94mm stud
› 1 layer 12.5mm plasterboard either side
FD30:
› 94mm stud
› 2 layers of 12.5mm plasterboard either side
The strike jamb comes with rubber batwing seals to provide a seal when the door is closed.
As the Motus can be supplied as either non fire-rated or fire rated, this detail varies slightly. To see fire rated strike jamb please take a look at the FD30 solution.
The leading edge jamb the leading support of the side pocket which has a side flange for the plasterboard to be butt up against.
The intermediate jamb forms the rest of the pocket. The aluminium profile has a timber insert which provides extra strength and facilitates easy fixing.
The head channel is the same width as the stud making it simple to accurately place and fix to the head stud.
The leading edge and intermediate jambs slot into the base channel and are fixed into place.
The Motus uses CS80-MAGNEO operater which requires almost minimal, or no, handling to activate and operates silently and smoothly.
The big benefit of the Enigma system is being aluminium the system can be adjusted in height and width very simply using a standard carpenters chop saw. This means that the kit can suit your specific size.
The intermediate jambs and the leading edge slot into the head channel and, once they are plumb, are securely fixed in place.
Enigma Motus powered sliding door can be controlled in a number of ways depending on your application. See ‘Opening Options’ for details.
The Motus Enigma doorset is fully fire rated to 30 minutes in single and double configurations.
Important note
To ensure the fire integrity is not compromised it is important that the wall partition is suitable and also the interface between the partition and doorset is correct.
At Enigma we are able to provide advice on your partition and interface details to ensure the fire regulations are met properly in conjunction with the Enigma doors. Please contact us on 020 3880 0339 where our Project Consultants would be glad to assist.
The Enigma doorset has been acoustically tested and can be provided with the following ratings:
› 23dB
› 24dB
› 28dB
› 30dB
Please contact us on 020 3880 0339 where our Project Consultants would be glad to advise you further.
For added peace-of-mind, should the property encounter a power-cut the doors will automatically full open to aid access.
For use with double doors, when one leaf is activated the other follows suit in a seamless fashion.
Satin stainless steel
NFR – ELS01
FD30 – ELS02
Suitable for NFR and FD30
Satin stainless steel
60mm square – SFP01
Suitable for NFR
Satin stainless steel
70mm diameter – CFP01
Suitable for NFR
Satin stainless steel
135mm long – OFP01
Suitable for NFR
Satin stainless steel
135mm long – RFP01
Suitable for NFR
For complete design freedom, the Enigma Motus shadow gap door system can be ordered with or without a door leaf.
4 hardwood lippings surround a solid timber core on the Selo door leaf.
Space for the sliding gear and the bottom guide are then cut out as necessary – and sent to the site ‘ready to fit’.
All Selo door leafs are solid timber core and lipped on all 4 sides with hardwood lippings.
Enigma doors are then cut out for sliding gear and the bottom guide channel where required and sent to site in their ‘ready to fit’ form.
For doors wider than 1220mm the door will be supplied in 2 sections to achieve the width. A jointing section will be supplied and a neat 3x3mm shadow gap.
The Enigma shadow gap sliding pocket door comes primed and ready to be painted on site.
A full range of RAL colours can be selected for the door leafs.
Extra durability can be added to the sliding pocket doors with a laminate coating.
If the design requires a veneer, choose from any timber style- it is then lacquered in a sheen of 30%.
The standard method; simply nudge the door open or closed and Motus will assist with the rest.
The sensor is fitted to the wall and by simply moving your hand in front of the sensor this activates the door.
Fixed to the wall, the button is pressed to activate opening. Push button can be provided as a hard wired or wireless option.
Available alongside the wireless push button the hand-held transmitter enables remote opening of the door.
Select your pocket door size
Important installation note
When using door heights of 2300mm+ then it is recommended the wall is double boarded. If using layers of 12.5mm plasterboard then add (145) to the product code to specify this.
Can’t find the size you need? Go bespoke;
Email your enquiry to sales@enigmapocketdoors.com
